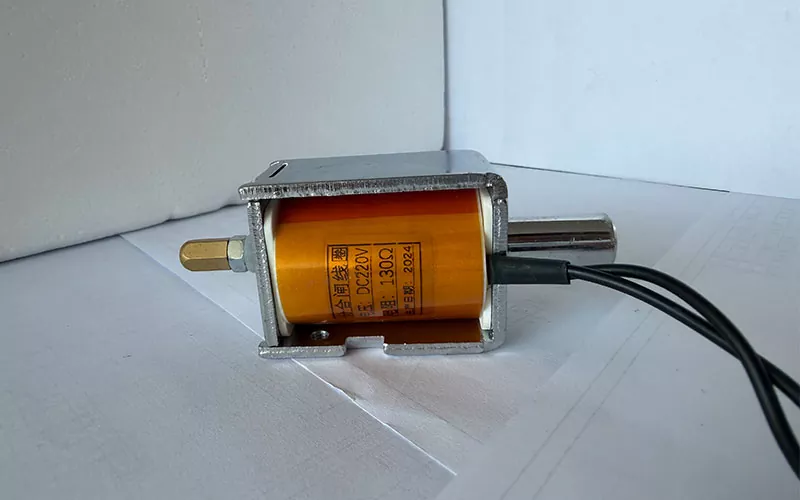

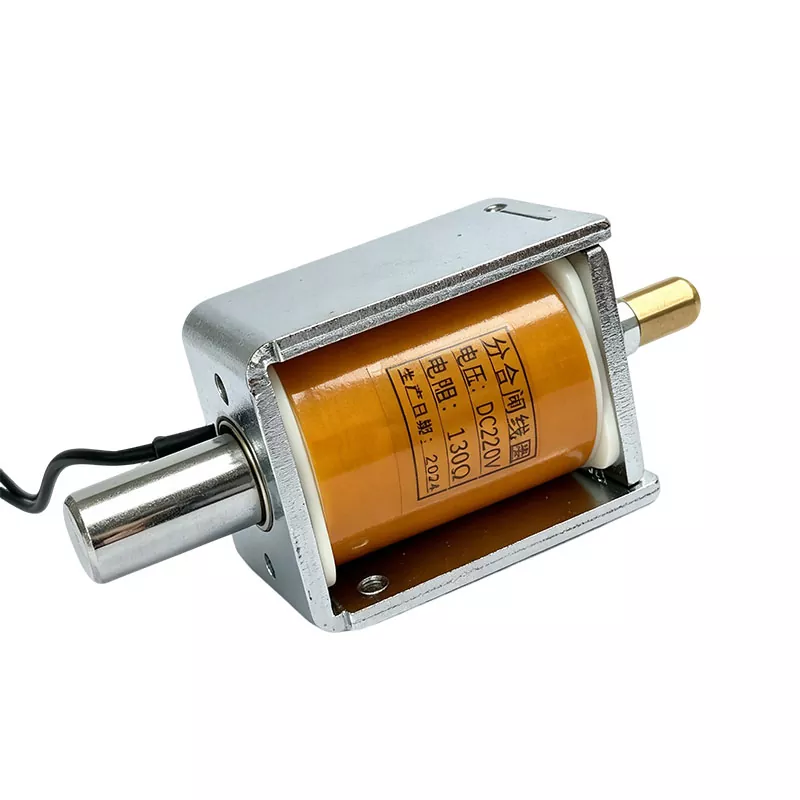

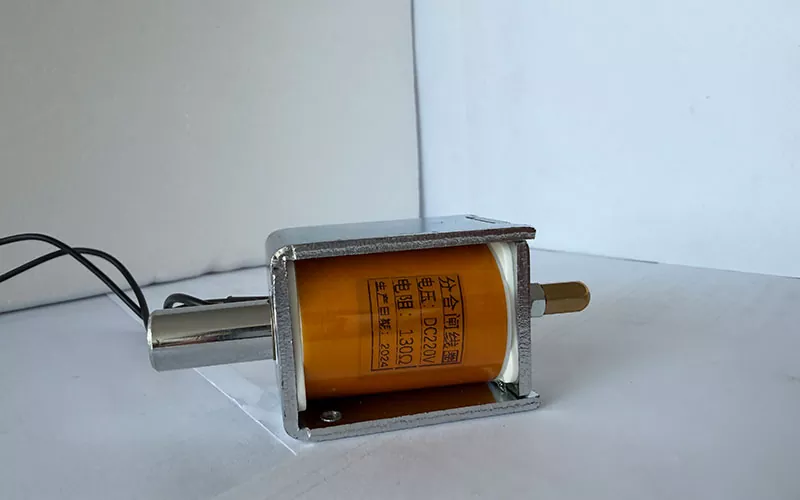

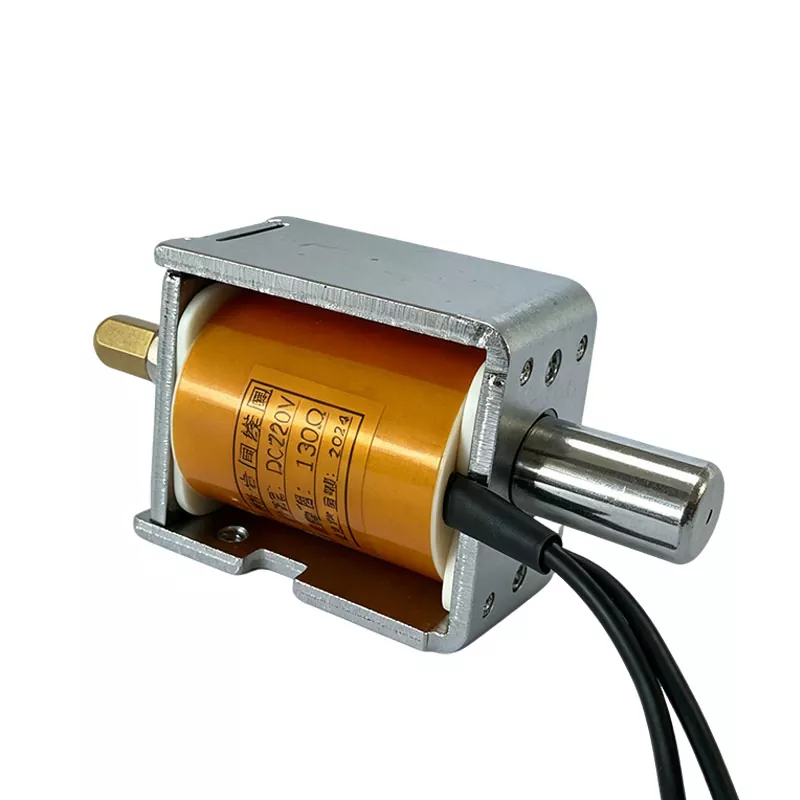

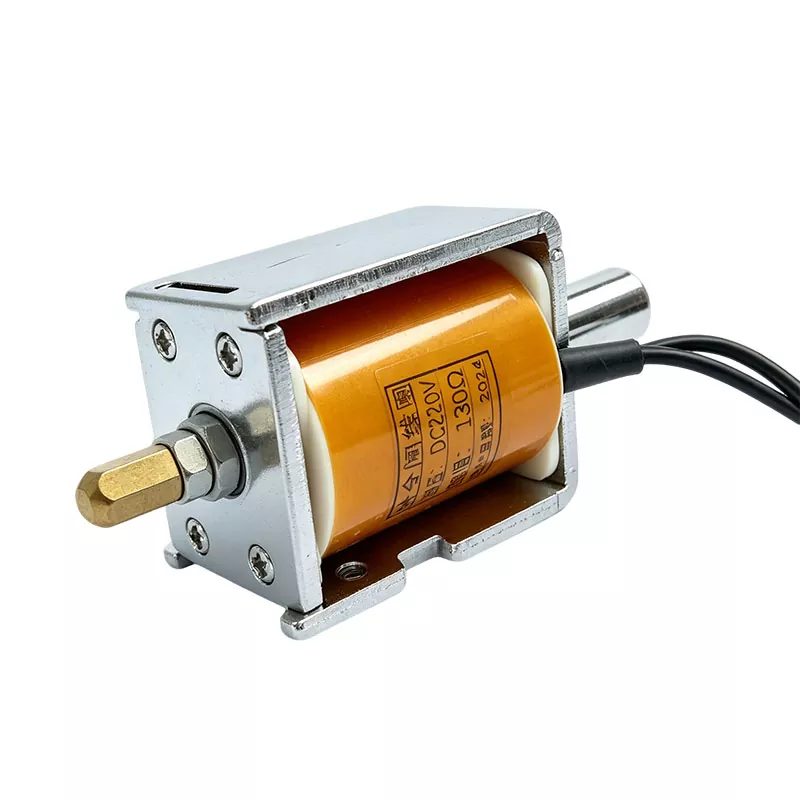

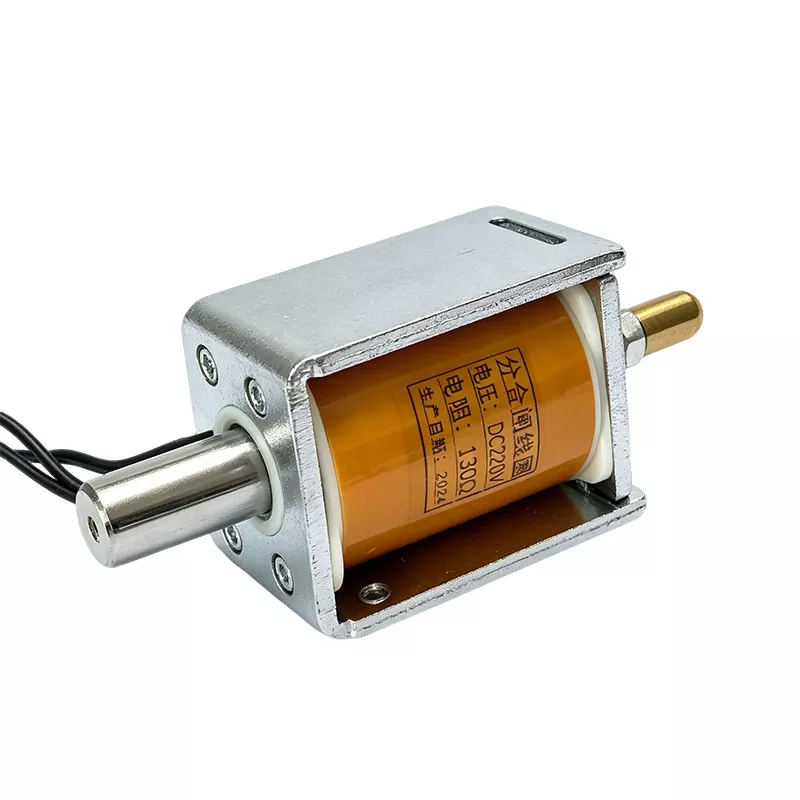

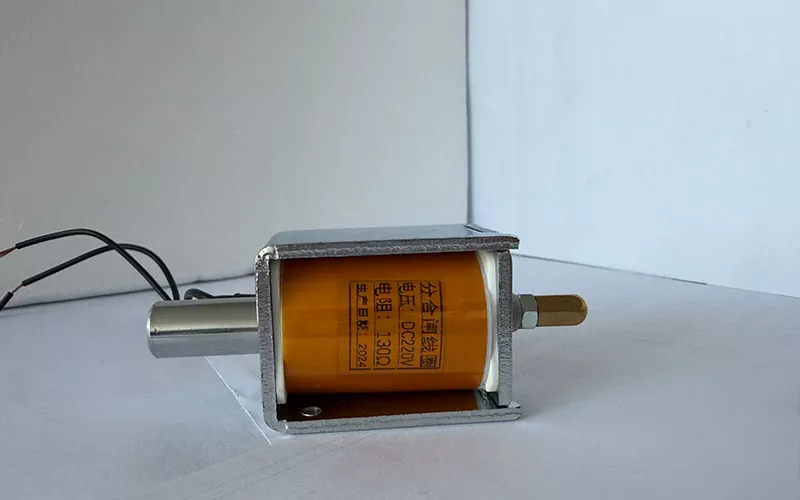

DC 220V 130 Ohm Closing and Tripping Coil

The DC 220V 130 Ohm Closing and Tripping Coil is designed for electromagnetic operation in compatible high-voltage vacuum circuit breaker mechanisms. It combines a DC220V coil, 130Ω resistance, double-ended shaft, two black multi-strand copper lead wires, brass push rod, and external reset spring. The configuration is intended for closing and opening mechanisms where the specified electrical and mechanical dimensions are matched.

Product Details

Operating Characteristics

The coil operates at DC220V with a resistance of 130Ω ±5% at 20°C. The calculated current is approximately 1.69A, with instantaneous power of approximately 372W. It is designed for short-time operation and should not remain energized continuously.

Double-Ended Shaft

The double-ended shaft provides support on both sides of the coil assembly, helping maintain balanced push rod movement and reducing deflection during operation. The brass push rod is suitable for repeated mechanical action in circuit breaker operating mechanisms.

Lead Wire Connection

The coil uses two black multi-strand copper lead wires for connection. The lead wire configuration allows flexible routing according to the wiring layout of the switchgear operating mechanism. This DC 220V 130 Ohm Closing and Tripping Coil configuration is intended for mechanisms requiring this specific shaft and connection arrangement.

External Reset Spring

The rear external reset spring provides spring self-reset after coil operation. Its external position also allows the spring condition to be checked during maintenance.

Technical Specifications

Working Principle

When DC220V is applied to the coil, current flows through the winding to generate an electromagnetic field. The magnetic force drives the brass push rod through the coil assembly, producing the mechanical movement required by the vacuum circuit breaker operating mechanism. After the control circuit cuts off the power, the external reset spring returns the push rod to its original position, preparing the mechanism for the next closing or opening operation. The DC 220V 130 Ohm Closing and Tripping Coil therefore converts the electrical control signal into the required mechanical movement.

Applications

• VS1 Vacuum Circuit Breakers - Used in closing and opening operating mechanisms to provide the required electromagnetic mechanical action.
• High Voltage Switchgear - Installed in switchgear operating mechanisms for circuit breaker closing and opening operations.
• Substation Switching Equipment - Used as a closing/opening actuator in high voltage switching equipment.
• Power Plant Electrical Systems - Applied to vacuum circuit breaker mechanisms used for power distribution and switching.
• Vacuum Circuit Breaker Replacement Projects - Used as a replacement coil when voltage, resistance, shaft configuration, mounting dimensions, and mechanism requirements are compatible with the DC 220V 130 Ohm Closing and Tripping Coil.

Production Scale & Capacity

• Production Facility: More than 2,000m² of production space in Yueqing, Zhejiang, China.
• Production Lines: 2 production lines supporting the manufacturing and assembly of high-voltage electrical products and electromagnetic coils.
• Team: 17 employees, including 4 technical and R&D personnel.
• Monthly Output: Approximately 600-700 units.
• Annual Capacity: Approximately 7,000-8,000 units.
• Product Scope: High-voltage vacuum circuit breakers, vacuum load switches, disconnect switches, and high- and low-voltage electromagnetic coils.
• OEM/ODM: Custom manufacturing is available based on customer drawings, technical specifications, and application requirements.

Frequently Asked Questions

1. What is the operating voltage and coil resistance of this closing/opening coil?

This coil operates at DC220V and has a coil resistance of 130Ω ±5% at 20°C. The steady-state current is approximately 1.69A.

2. What type of shaft and wiring does this coil use?

The coil uses a double-ended shaft and two black multi-strand copper lead wires for connection. The lead wire configuration allows flexible routing according to the switchgear operating mechanism wiring layout.

3. Where is this DC220V coil used?

It is designed for compatible vacuum circuit breaker closing and opening mechanisms, including VS1-type mechanisms and related high-voltage switchgear operating assemblies.

4. Can I order this coil for replacement applications?

Yes. For replacement projects, please provide the original coil model or the existing coil specifications, including operating voltage, resistance, shaft configuration, mounting dimensions, wiring, and reset structure.

5. What is the lead time for this coil?

Standard products typically require 7-15 working days. Customized requirements generally require 15-30 working days, depending on the required specifications and order quantity.

6. What information is needed for a quotation?

Please provide the required quantity, original model or drawing if available, operating voltage, coil resistance, shaft type, mounting dimensions, and application information. Dongfa Intelligent can confirm the suitable configuration based on these requirements.
