Vacuum Circuit Breakers Manufacturer for Reliable Power Distribution

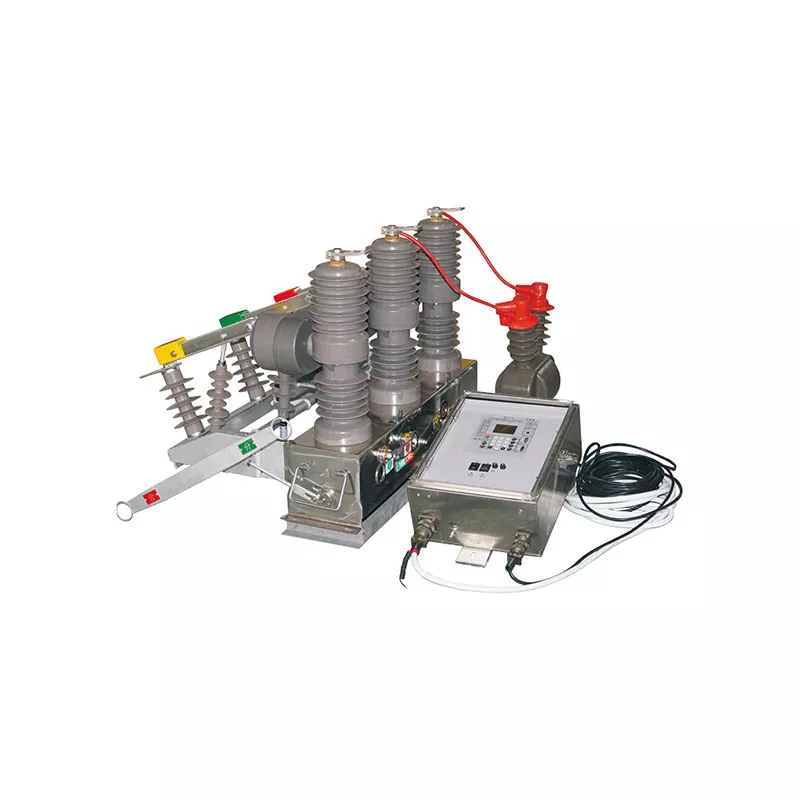

Choose a spring mechanism when the switchgear room is climate-controlled and maintenance access is available — it is the proven standard, lower cost, and widely serviced. Choose a permanent magnet mechanism when the breaker will face high temperature, high humidity, or outdoor conditions that cause spring mechanisms to corrode or seize. The permanent magnet mechanism has far fewer moving parts — no springs, no latches, no mechanical linkage — which is why it reaches 30,000 mechanical operations against 10,000 for a spring mechanism. It also eliminates internal condensation, a common failure mode in humid climates.

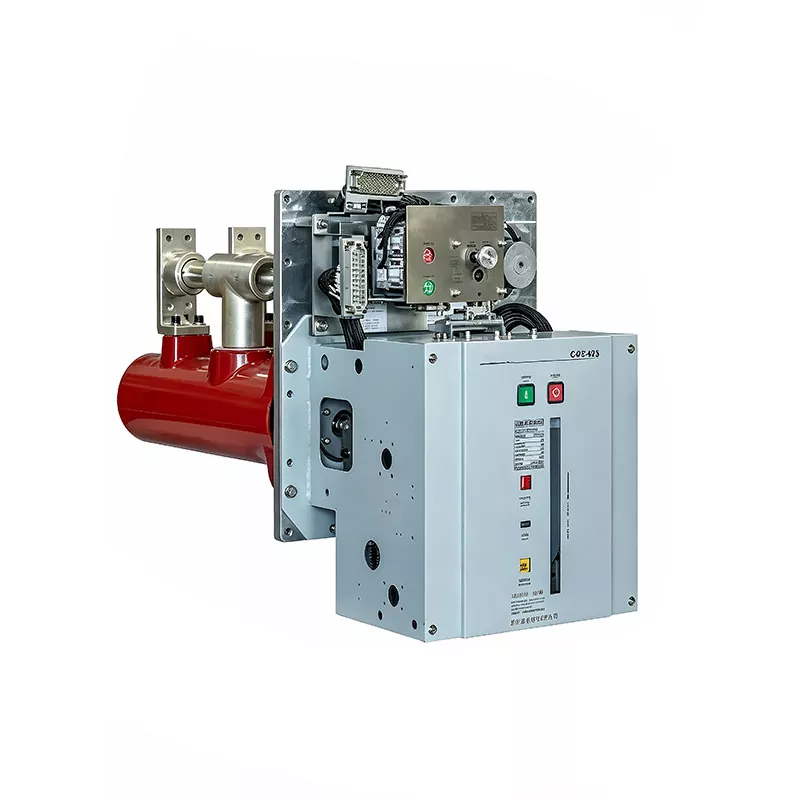

A three-position breaker integrates circuit breaker, disconnector, and earthing switch into a single solid-insulated pole. The three positions are: closed (conducting), open (isolated), and earthed (safety-grounded). You need one when the switchgear cabinet is a C-GIS or compact design where there is no space for separate isolation and earthing devices. The solid insulation also eliminates the SF6 gas used in conventional gas-insulated switchgear, which matters in markets with strict greenhouse gas regulations.

Because the mechanism determines what wears out. A spring mechanism has springs, latches, cams, and a mechanical linkage — all of which accumulate wear with every operation, and the rated 10,000 operations is the point at which the mechanism needs servicing. A permanent magnet mechanism replaces the entire spring-latch system with a magnetic holding circuit and a small actuating coil — far fewer parts to wear. This is why it reaches 30,000 operations. For applications with frequent switching duty, such as renewable energy integration, the difference in maintenance intervals over a 20-year service life is substantial.

Choose handcart type when maintenance access matters — the breaker can be withdrawn from the switchgear for service without de-energizing the busbar or disturbing adjacent circuits. This is the standard for medium voltage switchgear in industrial and commercial installations where planned maintenance windows are short. Choose fixed type when the breaker is installed in a compact cabinet, when the switchgear room is small, or when the breaker is not expected to need frequent removal.

GB is the Chinese national standard for high voltage switchgear; IEC 62271 is the international equivalent. The two standards are technically very close — the same vacuum interrupters, the same dielectric test voltages, the same mechanical life requirements — but the certification and type-testing procedures differ. For projects inside China, GB is mandatory. For projects outside China, IEC is usually the specified standard. Our products comply with both, and we can supply type test reports under either standard depending on the project's specification.

Yes. MOQ is 1 unit, with a standard lead time of 7–15 working days. This lets project teams verify the breaker's dimensions, terminal arrangement, and mechanism operation on a real unit before committing to a production order. For urgent projects, orders can be prioritized — confirm the delivery requirement in the inquiry and we will advise whether the schedule can be met. Factory-direct pricing means trial orders are not penalized with a higher unit price.
