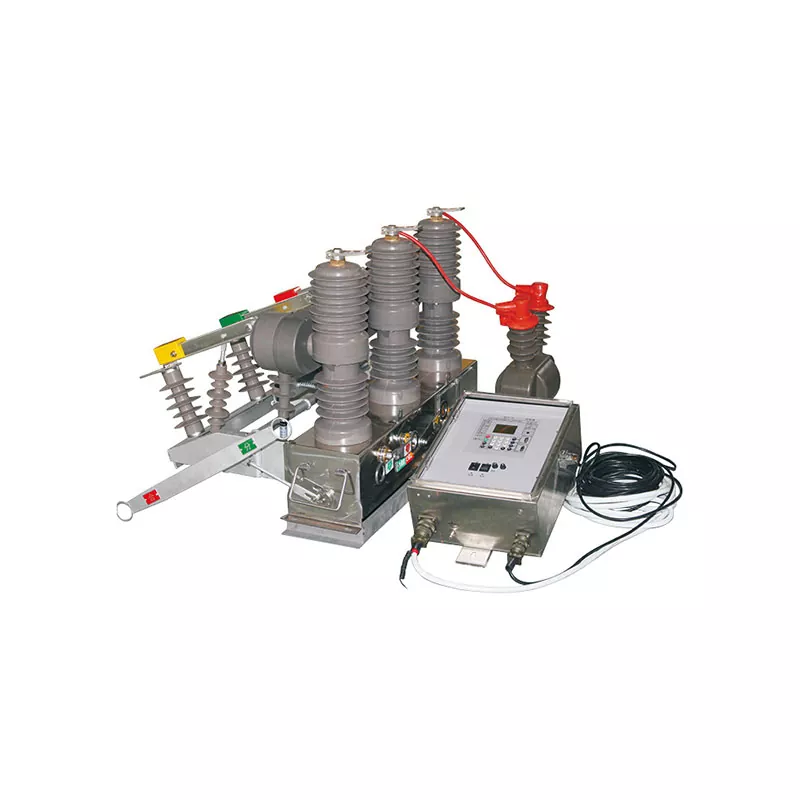

Dongfa Intelligent supplies global power engineering procurement teams and switchgear builders with factory-direct 12kV Outdoor Pole-Mounted Permanent Magnet Vacuum Circuit Breakers. Featuring a permanent magnet operating mechanism, this product has a compact structure with no internal condensation and no mechanism corrosion, solving the contradiction between vacuum interrupter miniaturization and external insulation requirements. Offers 630A/1250A, 16kA/20kA, and 30,000 operations. Request a quote for technical selection.
The permanent magnet operating mechanism uses magnetic force to maintain the opening or closing position, reducing the number of mechanical transmission components compared with a conventional spring mechanism. With fewer moving parts involved in operation, the structure is simpler and the potential number of mechanical wear points is reduced.
The simplified mechanism allows the breaker to maintain a relatively compact structure. For pole-mounted applications, equipment size and weight are important because the breaker must be supported by an outdoor mounting structure. The compact arrangement can therefore simplify equipment integration where installation space or existing pole structures are limited.
Outdoor medium-voltage equipment is exposed to humidity, rain, dust, temperature changes, and in some locations salt spray. For this reason, the internal environment of the operating mechanism is an important consideration in addition to electrical insulation.
The internal design is intended to reduce condensation inside the mechanism under changing outdoor temperature and humidity conditions. This helps limit moisture-related risks to internal mechanical components.
The mechanism and internal components are configured with outdoor operating conditions in mind. Reducing moisture exposure and using appropriate corrosion-resistant materials helps protect the operating mechanism in humid or coastal environments.
| Parameter | Specification |
| Product Type | Outdoor Pole-Mounted Permanent Magnet Vacuum Circuit |
| Rated Voltage | 12kV |
| Rated Frequency | 50Hz |
| Rated Current | 630A / 1250A |
| Rated Short-Circuit Breaking Current | 16kA / 20kA |
| Rated Short-Time Withstand Current | 16kA / 20kA |
| Rated Peak Withstand Current | 40kA / 50kA |
| Rated Short-Circuit Making Current | 50kA |
| Power-Frequency Withstand Voltage | 42kV / 48kV |
| Lightning Impulse Withstand Voltage | 75kV / 85kV |
| Mechanical Life | 30,000 operations |
| Comparison Point | Permanent Magnet Mechanism | Traditional Spring Mechanism |
| Operating Structure | Simplified magnetic operating mechanism | Spring energy storage with mechanical transmission |
| Mechanical Components | Fewer moving components | More mechanical transmission components |
| Mechanical Life | 30,000 operations | Depends on the specific breaker design |
| Equipment Size | Compact arrangement | Structure depends on the spring operating system |
| Outdoor Considerations | Designed with condensation and corrosion control in mind | Requires corresponding protection for outdoor conditions |
The main distinction is not simply the operating method. The permanent magnet configuration combines a simplified mechanism with a compact breaker structure, which can be useful when pole-mounted equipment needs to balance mechanical reliability, installation space, and outdoor environmental protection.
The 12kV Outdoor Pole-Mounted Permanent Magnet Vacuum Circuit Breaker is produced within Dongfa Intelligent's established high-voltage electrical manufacturing system. Zhejiang Dongfa Intelligent Electrical Technology Co., Ltd. has focused on high-voltage electrical products since 2012 and operates its own factory in Yueqing Economic Development Zone, Wenzhou, Zhejiang, China.
The factory covers more than 2,000m² and operates 2 production lines with 17 employees, including 4 technical and R&D personnel. Current production capacity is approximately 600-700 units per month, with annual capacity of around 7,000-8,000 units. One set of testing equipment is used for product inspection before shipment.
Each unit is subject to factory inspection before delivery. The inspection process includes:
Relevant test records can be provided upon request for project documentation and technical verification.
Dongfa Intelligent manufactures the 12kV Outdoor Pole-Mounted Permanent Magnet Vacuum Circuit Breaker according to applicable GB and IEC requirements. The company's quality management system is certified to ISO 9001, ISO 14001, and ISO 45001, with CNAS and IAF recognition associated with the certification system.
Key high-voltage product lines have also undergone type testing by the National High-Voltage Electrical Apparatus Quality Supervision and Inspection Center (Xi'an High-Voltage Apparatus Research Institute). Testing covers electrical performance, insulation levels, mechanical performance, and interrupting characteristics according to applicable product standards.

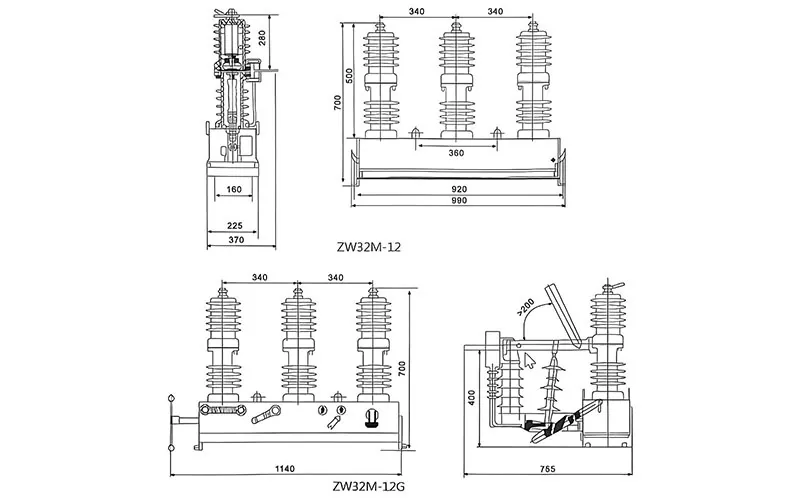

For a new installation, the rated voltage, rated current, short-circuit breaking current, insulation level, mounting arrangement, and control requirements should be confirmed before ordering. For replacement projects, the original breaker model and mounting dimensions are also important because the permanent magnet operating mechanism may differ from the mechanical and control interface of an existing spring-operated breaker.
For technical matching, customers can provide the original product model, mounting drawings, electrical parameters, control requirements, application conditions, and required quantity. Dongfa Intelligent can review these details before production.
Standard products support a minimum order quantity of 1 unit. Standard lead time is approximately 7-15 working days, while customized products generally require 15-30 working days. OEM/ODM production can be arranged according to customer drawings, technical specifications, nameplate requirements, packaging, and manuals.
Technical consultation is available for product selection, electrical parameters, installation arrangement, and replacement projects. Customers can provide the required operating conditions and technical documents for review before placing an order.
The Outdoor Pole-Mounted Permanent Magnet Vacuum Circuit Breaker uses magnetic force to control the opening and closing position, while a conventional spring mechanism relies on stored spring energy and mechanical transmission components. The permanent magnet arrangement uses fewer moving mechanical components.
The 12kV Outdoor Pole-Mounted Permanent Magnet Vacuum Circuit Breaker is available with rated currents of 630A and 1250A. The corresponding short-circuit breaking current options are 16kA and 20kA.
The specified mechanical life is 30,000 operations. The actual operating frequency and service conditions should be considered when evaluating equipment requirements for a specific project.
The breaker is designed with internal condensation and corrosion control in consideration. It can be considered for outdoor applications exposed to humidity, temperature changes, dust, and salt-laden air, subject to the actual environmental conditions of the installation site.
Replacement can be evaluated on a project basis. Please provide the original breaker model, mounting dimensions, electrical parameters, control requirements, and relevant drawings. The mechanical interface and control circuit should be checked before production.
Factory inspection includes resistance testing, mechanical operation testing, withstand voltage testing, and vacuum degree inspection. Relevant test records can be provided upon request.
Please provide the rated current, short-circuit breaking current, installation arrangement, control requirements, application conditions, and quantity. For replacement projects, the original breaker model and mounting drawings are also recommended.
For selection of the 12kV Outdoor Pole-Mounted Permanent Magnet Vacuum Circuit Breaker, please provide the rated current, short-circuit breaking current, installation arrangement, control requirements, application conditions, and quantity. For replacement projects, the original breaker model and mounting drawings can help with technical matching.
