12kV Indoor High-Altitude Disconnect Switch

Dongfa Intelligent is a manufacturer of 12kV Indoor High-Altitude Disconnect Switch for indoor switchgear installed in high-altitude environments. At higher elevations, reduced air density can affect external insulation and heat dissipation, while cabinet space and mounting dimensions also need to be considered. The GN30-12GY series is configured according to the installation environment, electrical requirements, and mechanical arrangement of the switchgear.

Why High-Altitude Switchgear Requires a Different Selection

Installing 12kV switchgear at high altitude introduces environmental conditions that need to be considered during electrical equipment selection. As air density decreases with altitude, the insulation strength of air and natural heat dissipation conditions can change. A disconnector therefore needs to be selected according to the actual installation environment rather than by rated voltage and current alone.

Reduced Air Density and Insulation

Air is part of the external insulation system of indoor electrical equipment. At higher altitude, lower air density reduces its dielectric strength. This means the installation environment should be considered when checking insulation clearances and the applicable electrical configuration of a 12kV Indoor High-Altitude Disconnect Switch.

Heat Dissipation at High Current

High-current disconnectors generate heat through the main conductive path. Reduced air density can affect natural convection, making rated current and main-circuit resistance important selection parameters. The GN30-12GY series provides different current configurations with specified resistance values for the main circuit.

Cabinet Integration Still Matters

High-altitude adaptation does not replace normal mechanical matching. The disconnector must also correspond with the switchgear's mounting position, conductor arrangement, operating mechanism, phase spacing, and available installation space. Existing cabinet drawings or dimensions should therefore be checked before replacement.

How the GN30-12GY Series Is Configured

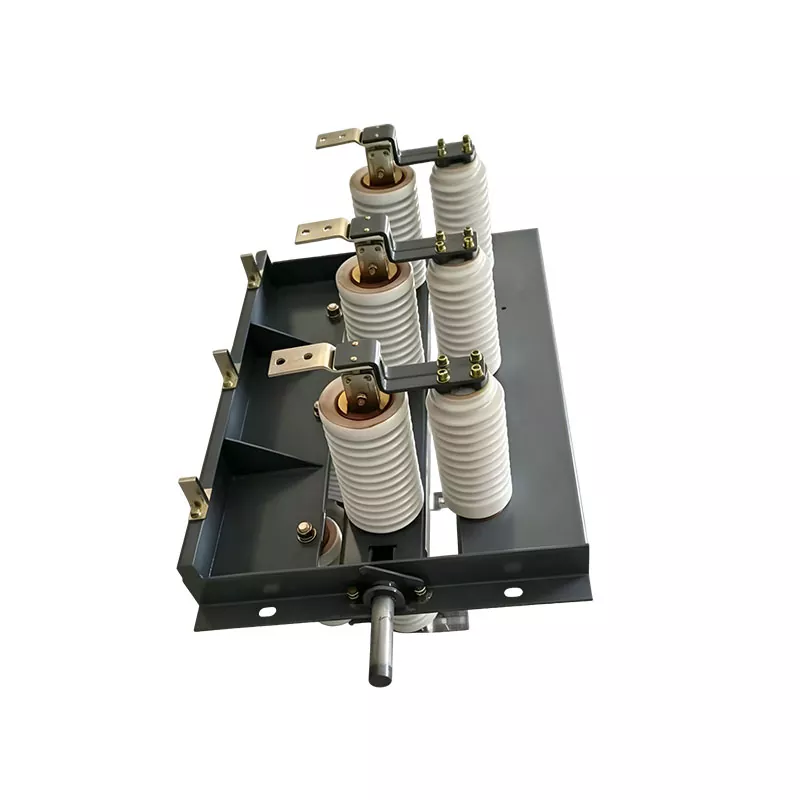

The GN30-12GY series is intended for indoor 12kV switchgear where high-altitude installation conditions need to be included in equipment selection. Three rated-current configurations are provided: 2000A, 2500A, and 3150A.

Choosing the Right Current Configuration

2000A Configuration

The GN30-12GY/2000-40 configuration is rated for 2000A continuous working current, with a 40kA 4s short-time withstand current and 100kA rated peak withstand current. Its specified main-circuit resistance is 25μΩ.

2500A Configuration

The GN30-12GY/2500-40 configuration provides a 2500A rated working current. It has the same 40kA 4s short-time withstand current and 100kA peak withstand current as the 2000A version, while the specified main-circuit resistance is 20μΩ.

3150A Configuration

The GN30-12GY/3150-50 configuration is rated for 3150A and provides a 50kA 4s short-time withstand current and 125kA peak withstand current. The specified main-circuit resistance is 12μΩ.

The rated current should be selected according to the continuous circuit load and switchgear design. Short-time withstand requirements, peak withstand requirements, installation conditions, and cabinet dimensions should also be checked together.

Installation Dimensions for Cabinet Matching

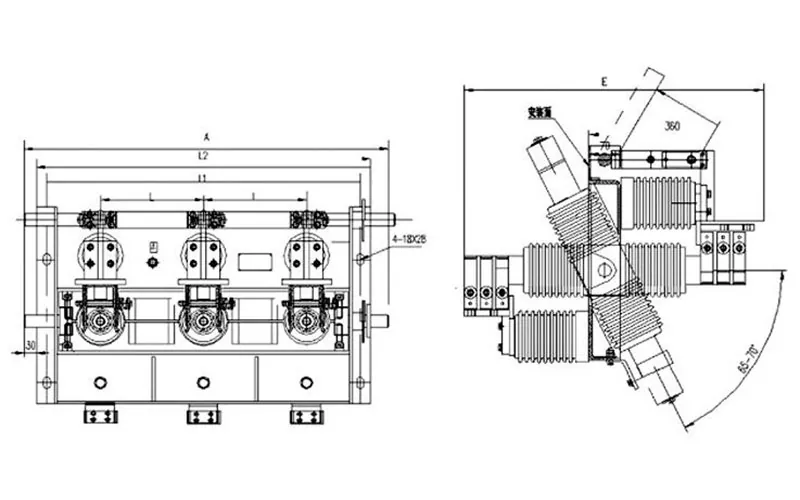

L, L1, L2, and A have two available dimension options. The final dimension should be confirmed according to the switchgear layout and installation requirements.

What to Check Before Ordering

For a new switchgear project, the 12kV Indoor High-Altitude Disconnect Switch should be selected together with the cabinet's electrical and mechanical design. The following information is recommended for technical confirmation:

1. Actual installation altitude
2. Rated system voltage
3. Required continuous working current
4. Short-time withstand current
5. Peak withstand current
6. Switchgear model and internal arrangement
7. Required mounting dimensions
8. Ambient temperature and installation conditions

Providing these details in advance helps confirm whether the selected configuration matches the electrical and mechanical requirements of the project.

Replacement and Retrofit Considerations

For retrofit projects, replacing a disconnector is not only a matter of matching the rated current. The existing cabinet structure and mounting arrangement should also be checked.

Check the Existing Product

The original product model, rated current, electrical parameters, mounting dimensions, and available drawings should be collected before selecting a replacement.

Compare Mounting Dimensions

The GN30-12GY series has different B, D, and E dimensions for the 3150A configuration compared with the 2000A and 2500A configurations. This should be checked against the existing cabinet before replacement.

Confirm the Operating Arrangement

The replacement disconnector should correspond with the existing operating mechanism and switchgear arrangement. If the existing cabinet has limited installation space, technical drawings should be reviewed before production.

Applications in High-Altitude Power Projects

Plateau Substations

The 12kV Indoor High-Altitude Disconnect Switch can be considered for indoor 12kV switchgear used in plateau substations, where altitude is part of the equipment selection conditions.

Industrial and Mining Power Distribution

Industrial and mining facilities located in high-altitude regions may require medium-voltage switchgear with current ratings suitable for their distribution loads and environmental conditions. The GN30-12GY configurations provide 2000A, 2500A, and 3150A options.

Renewable Energy Projects

High-altitude photovoltaic and wind power projects may use indoor medium-voltage switchgear for collection and distribution systems. Product selection should be based on the actual electrical parameters, altitude, cabinet configuration, and project requirements.

Existing Switchgear Upgrades

For replacement and upgrade work, the product can be evaluated against existing switchgear dimensions and electrical requirements. Drawings and technical data can be reviewed before confirming the replacement configuration.

Product Development and Technical Coordination

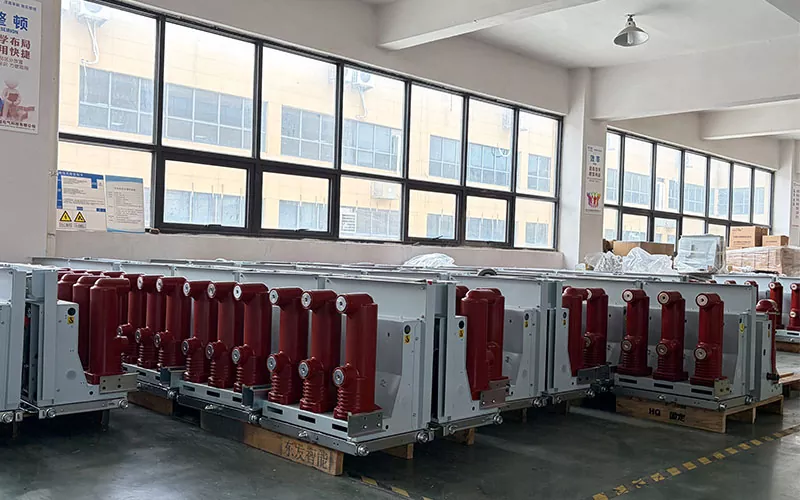

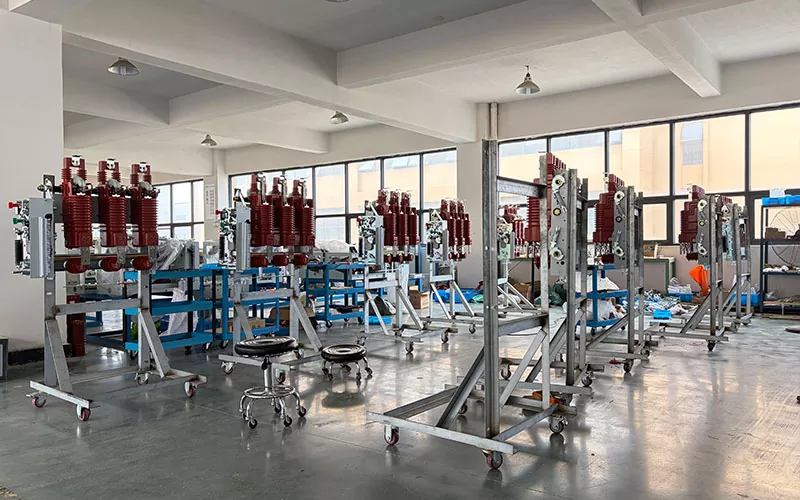

Dongfa Intelligent has worked in high-voltage electrical manufacturing since 2012. The company's product development has expanded from high- and low-voltage electromagnetic coils into finished high-voltage switchgear products, including vacuum circuit breakers, load switches, disconnect switches, and outdoor isolating vacuum load switches.

The current product range covers 12kV, 24kV, and 40.5kV applications. This product range allows technical requirements to be considered together when a project involves multiple types of high-voltage switching components.

Technical Information Review

For project-specific requirements, Dongfa Intelligent can review customer drawings, technical specifications, application conditions, and installation dimensions before production. This is particularly useful for replacement projects and non-standard switchgear configurations.

OEM and ODM Production

OEM/ODM production can be evaluated according to customer drawings, technical specifications, application requirements, and product identification requirements. Nameplates, printing, packaging, and manuals can be coordinated according to confirmed project requirements.

Quality and Testing Requirements

Dongfa Intelligent operates under ISO 9001, ISO 14001, and ISO 45001 management systems. Products are manufactured according to applicable GB and IEC standards. Relevant core products have type test documentation from qualified high-voltage electrical testing institutions. Applicable technical documents and test reports can be provided according to the product and project requirements.

FAQ

What does the GY designation mean?

The GY designation identifies the high-altitude configuration of the GN30-12 series. The 12kV Indoor High-Altitude Disconnect Switch is intended for indoor 12kV switchgear where installation altitude needs to be considered during equipment selection.

What rated currents are available?

The documented GN30-12GY configurations are 2000A, 2500A, and 3150A.

What is the main-circuit resistance of the 3150A model?

The GN30-12GY/3150-50 model has a specified main-circuit resistance of 12μΩ.

Does the installation altitude need to be provided?

Yes. The actual installation altitude is an important selection condition because air density affects insulation and heat dissipation. The project altitude should be provided for technical confirmation.

Can the product be used for replacement projects?

Yes. Replacement projects require checking the original product model, rated current, electrical parameters, mounting dimensions, cabinet arrangement, and installation conditions before confirming compatibility.

Can Dongfa provide customized dimensions?

Customized requirements can be evaluated based on technical drawings, switchgear dimensions, electrical parameters, and application conditions. Please provide the relevant drawings or specifications for review.

What is the lead time?

Standard products generally require 7-15 working days. Customized products generally require 15-30 working days. The actual schedule depends on the confirmed technical requirements and order quantity.
